add a timeseries field

[msowinski]

 Hi,

Here is a simple dql example to ilustrate my issue

timeseries test=avg(dt.host.cpu.usage), by:{dt.entity.host}
| fieldsadd cpu_state=if(arrayAvg(test)>7,1,else:0)

I would like to see history of cpu_state, but I always have one value (may be due to the arrayAvg). How can I see cpu state as a graph and see the value evolution?

Regards,

Marc

[GerardJ]

Hi @msowinski
I don't really understand what you want to do, could you elaborate a bit more on your use case and what you want to achieve?

[msowinski]

Hi Gerard,
Of course
If I just create this dql
timeseries test=avg(dt.host.cpu.usage), by:{dt.entity.host}
I get a graph of cpu usage evolution for each host based on the time windows I have selected in the dashboard.
Suppose now that I want to create a new  field named status on cpu usage wher rule is the following
if cpu_usage  is above 7 then state = 1

if cpu_usage is below 7 then state =0

I would like to display state graph based on the time windows I have selected in the dashboard.
How can I do that?

[GerardJ · Accepted solution]

Ok I got it

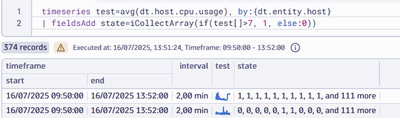

So what you want is something like that :

here I use an iterative expression to compare each timeserie array value to the treshold

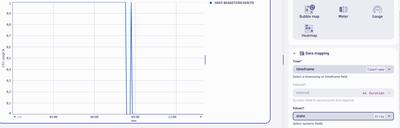

I choose to display it as a table for clarity but you can also use this state array in a graph

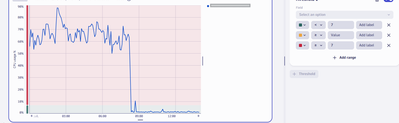

There are other possibilities, for display purposes for example i'd rather use the thresholds which have the advantage of being visual while preserving the true cpu values on the graph.
