SNMP Traps mib

[a_chiaravalle-m]

Hi Team

I installed the SNMP Traps extension and uploaded specific mib files in this directory (also restarted the AG):

/var/lib/dynatrace/remotepluginmodule/agent/conf/userdata/mib-files-custom

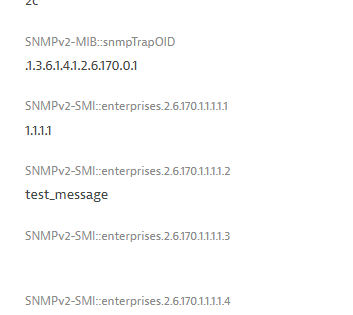

but when I sent a trap for testing, in Dynatrace logs I see the snmp varbind OID :

and not the OID Name as reported in the mib file (alertID, type, severity, ...):

did I missed something?

Thanks

Antonello

[AntonioSousa · Accepted solution]

@a_chiaravalle-m ,

The SNMPv2-MIB::snmpTrapOID that you show will always be in number format.

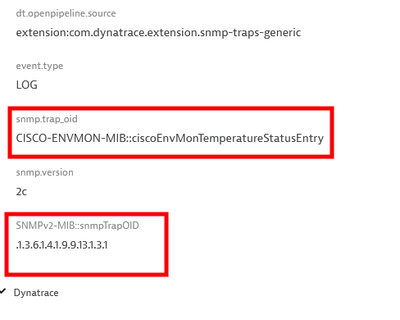

The complete name of the trap OID is named snmp.trap_oid, and should appear slightly above, as in the example below (for another type of trap). I have a very big use case of traps, ~100 custom MIBs, and it has worked flawlessly with me.

BTW, I was not able to find that particular MIB freely available. We do know it is from IBM, but was not able to find it online...

[a_chiaravalle-m]

Hi

you can get the MIB from here:

https://www.ibm.com/docs/en/software-hub/5.1.x?topic=alerting-configuring-snmp-alerts

this mib is related to IBM Cloud Pak for Data

Thanks
