Custom Diagram Creator: live architecture diagrams in Dynatrace

[JoseRomero]

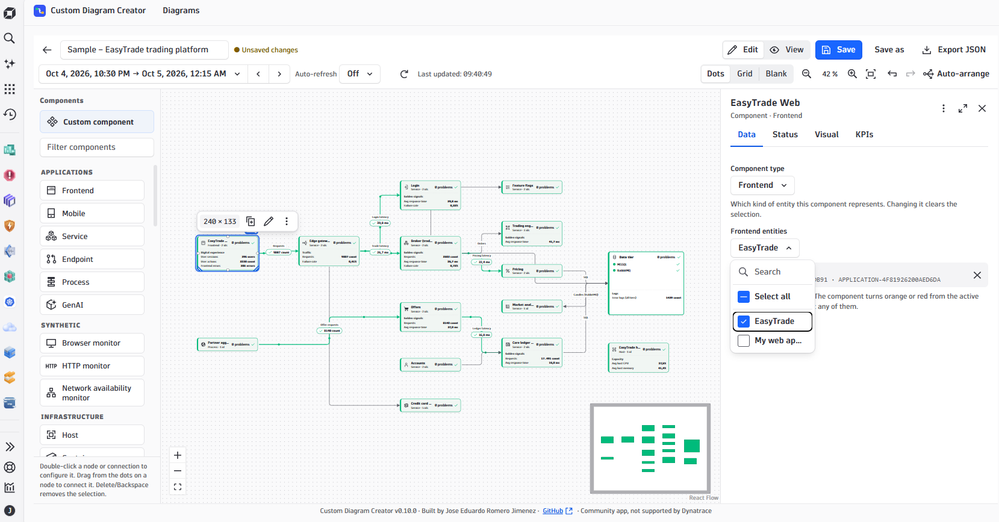

Hi community, I built a Dynatrace app to draw your architecture by hand and light it up with live data from Grail:

• 49 component types (services, endpoints, synthetic monitors, hosts, Kubernetes, AWS, Azure, GCP) to place the real entities on the canvas.

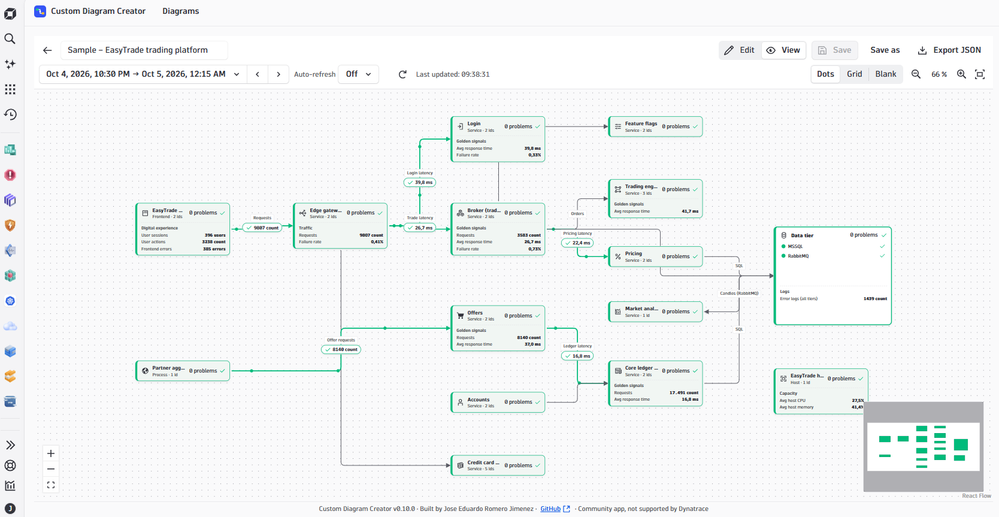

• Each component turns green, orange or red from the Davis problems in the timeframe. Move the timeframe back to see how things looked at that moment.
• Ready-made KPIs per entity (requests, response time, failure rate, availability), and animated KPI connections between components.

Deploy it with GitHub Codespaces in a few minutes.

📖 Docs: https://edunzz.github.io/dynatrace_apps_custom_diagram_creator/

💻 Code: https://github.com/Edunzz/dynatrace_apps_custom_diagram_creator

Community project, not an official Dynatrace product. Feedback welcome via GitHub issues.

[AgataWlodarczyk]

Thanks for sharing @JoseRomero !
