Our support document, Generic network topology is the best guide to understanding how Generic topology works. I'd also recommend, Define custom topology. A good understanding here will help you to guide what changes (if any) you need to make to the original extension's topology. The key concept to understanding is that generic topology uses the dimension values of your metrics to extract entities.
Here's an example from the extension you mentioned:
topology:
types:
- enabled: true
name: sql:db2_host
displayName: DB2 Host
rules:
- idPattern: db2_host_{device.address}
instanceNamePattern: DB2 {device.address}
iconPattern: host
sources:
- sourceType: Metrics
condition: $prefix(db2)
attributes:
- pattern: '{device.address}'
key: dt.ip_addresses
displayName: IP Address
- pattern: '{device.name}'
key: Hostname
- pattern: '{os_full_version}'
key: OSFullVersion
displayName: OS Full Version
- key: dt.security_context
displayName: Security Context
pattern: '{dt.security_context}'
Here's an explanation of some of the key properties.
- idPattern: Each DB2 device requires a unique ID. "db2_host_" + the device's address ("device.address") will form a unique ID.
- instanceNamePattern: The text, "DB2 " + the device's address.
- sources : condition: Where does this data come from? It comes from any metric prefixed with "db2".
- attributes: The entity is assigned attributes that match the dimensions of the metric. The metric dimension, "device.name" produces an entity attribute named, "Hostname" and so on.

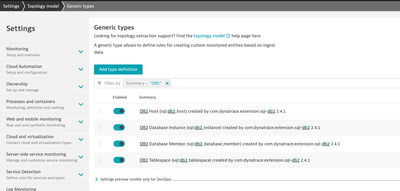

If you have the OOTB extension added to your environment, this topology should already be present. You can check this by going to Settings: topology model : Generic types. You can see all of your existing types here.
If your custom extension, uses the same metric prefix ("db2") and the same dimension names, your extension will work along side the existing topology. If you have changed the metric prefix or dimension names, you have two options.
First, are you sure the prefix and dimension names need to be different? If you can make them the same, the existing topology will work.

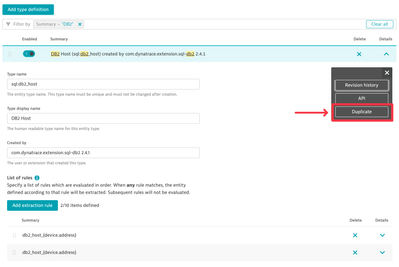

Second, if the your names and prefix need to be unique, you can copy the existing topology and modify the prefix and dimension names to your liking. You can even duplicate the topology within the UI and make your changes there.
This is useful for testing your changes before you commit them to your YAML extension definition.
