Plugin Metrics

Guys, can anyone support me to understand the reason for these messages in my log, my plugin?










{
  "name": "custom.remote.python.dict_cancelar_portabilidade",

  "version": "1.00",
  "type": "python",
  "entity": "CUSTOM_DEVICE",
  "metricGroup": "tech.python.cancelar.portabilidade",
  "technologies": [
    "Python"
  ],
  "favicon": "https://jocumpr.com.br/wp-content/uploads/2021/08/logo-pix-icone-1024.png",
  "source": {
    "package": "custom_remote_python_cancelar_portabilidade_dict",

    "className": "PluginPythonMySQL",
    "install_requires": [
      "mysql-connector",
      "requests>=2.6.0"
    ],
    "activation": "Remote"
  },
  "metrics": [
    {
      "entity": "CUSTOM_DEVICE",
      "statetimeseries": {
        "key": "count",
        "states": ["OK", "Bad"],
        "dimensions": [],
        "unit": "Count",
        "displayname": "Cancelar Portabilidade - Atraso"
      }
    }
  ],
        "configUI": {
    "displayName": "Cancelar Portabilidade - Atraso"
  },
     "ui": {
       "keymetrics" : [
      {
        "key": "count",
        "displayname": "",
        "statemetric": true
      }
    ],
       "charts": [
            {
                "group": "Cancelar Portabilidade - Atraso",
                "title": "Status Cancelamentos de Portabilidade",
                "series": [
                    {
                        "key": "count",
                        "displayname": " ",
                        "seriestype": "bar",
                        "statecolors": ["#49b675", "#ff0000"],
                        "statechart": true
                    }
                ]
            }
        ]
    }
}











import mysql.connector
from mysql.connector import Error
from ruxit.api.base_plugin import RemoteBasePlugin
import logging

logger = logging.getLogger(__name__)

class PluginPythonMySQL(RemoteBasePlugin):

    def query(self, **kwargs):

        global cursor, con
        resultado = "0"
        statusOK = "OK"
        statusNOTOK = "Bad"

        try:
            con = mysql.connector.connect(host='',
                                          database='', user='', password='')
            consulta_sql = ""

            cursor = con.cursor()
            cursor.execute(consulta_sql)
            count = len(cursor.fetchall())
            print(count)
            if count == 0:
                resultado = statusOK
                print(resultado)
            else:
                resultado = statusNOTOK
                print(resultado)

            group = self.topology_builder.create_group("ANS DICT", "ANS DICT")
            device = group.create_element("Cancelar Portabilidade - Atraso", "Cancelar Portabilidade - Atraso")
            group.report_property(key="Versão Plugin", value="1.00")
            group.report_property(key="Desenvolvedor", value="Rodrigo Biaggio")
            group.report_property(key="Others Technologys", value="MySQL")
            group.report_property(key="Serviço", value="Pix")
            device.report_property("Database Name", "addressing")
            device.report_property("Descrição", "Atraso no cancelamento de portabilidade")
            device.add_endpoint("", 3306)
            device.relative("resultado", 1)
            group.absolute(key='count', value=count)
            device.state_metric("count", resultado)

        except Error as e:
            print("Erro ao acessar tabela", e)

        finally:
            con = mysql.connector.connect(host='',
                                          database='', user='', password='')
            cur = con.cursor()
            if con.is_connected():
                con.close()
                cur.close()
                print("Coleta efetuada e conexão fechada")







Thanks

Dynatrace Professional
6 REPLIES 6

AntonioSousa
DynaMight Leader
DynaMight Leader

Not sure if it might be the only problem, but I would say that for the following line

device.relative("resultado", 1)

you have to define "resultado" in the json file.

Antonio Sousa

@AntonioSousa, thanks but i have the metric inside my json. I believe this point is related to the fact that I don't see the data on my device.




Dynatrace Professional

I was referring to the first block that you posted, and that I suppose it's the json you are referring to? Because "resultado" is not defined there.

Antonio Sousa

Sorry @AntonioSousa, I've already changed this json. Here is the correct one.

{
  "name": "custom.remote.python.sincronismo_dict",
  "version": "1.00",
  "type": "python",
  "entity": "CUSTOM_DEVICE",
  "metricGroup": "tech.python.sincronismo.dict",
  "technologies": [
    "Python"
  ],
  "favicon": "https://jocumpr.com.br/wp-content/uploads/2021/08/logo-pix-icone-1024.png",
  "source": {
    "package": "custom_remote_python_sincronismo",
    "className": "Sincronismo",
    "install_requires": [
      "mysql-connector",
      "requests>=2.6.0"
    ],
    "activation": "Remote"
  },
  "configUI": {
    "displayName": "DICT - Sincronismo"
  },
  "ui": {
    "keymetrics": [
      {
        "key": "count",
        "aggregation": "max",
        "mergeaggregation": "sum",
        "displayname": "Sincronismo"
      },
      {
        "key": "resultado",
        "displayname": "Status",
        "statemetric": true
      }
    ],
    "keycharts": [
      {
        "group": "Status",
        "title": "Status",
        "series": [
          {
            "key": "resultado",
            "displayname": "Status",
            "seriestype": "bar",
            "statecolors": [
              "#00b33c",
              "#ff3333"
            ],
            "statechart": true
          }
        ]
      },
      {
        "group": "Sincronismo",
        "title": "Sincronismo",
        "series": [
          {
            "key": "count",
            "displayname": "Total Atrasados",
            "seriestype": "area",
            "color": "#74cff7"
          }
        ]
      }
    ]
  },
  "metrics": [
    {
      "statetimeseries": {
        "key": "resultado",
        "states": [
          "OK",
          "Bad"
        ],
        "displayname": "Status Sincronismo"
      },
      "entity": "CUSTOM_DEVICE"
    },
    {
      "timeseries": {
        "key": "count",
        "unit": "Count",
        "displayname": "Total Sincronismo",
        "aggregation": "MAX"
      },
      "entity": "CUSTOM_DEVICE_GROUP",
      "alert_settings": [
        {
          "alert_id": "custom_claim_alert",
          "event_type": "ERROR_EVENT",
          "event_name": "Existem Sincronismos em Atraso!!",
          "description": "The {metricname} of {severity} is {alert_condition} the threshold of {threshold}",
          "threshold": 0,
          "alert_condition": "ABOVE",
          "samples": 5,
          "violating_samples": 1,
          "dealerting_samples": 5
        }
      ]
    }
  ]
}



Dynatrace Professional

AntonioSousa
DynaMight Leader
DynaMight Leader

So, I believe the error remains the same?

In my code, I normally use it like this:

device.relative(key='resultado', value=1)

Antonio Sousa

Yes, the same error. There is an problem in my code, I need to try to find out where it is.

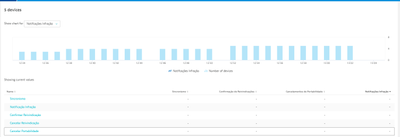

There are some graphics that are not being populated. It must have some relationship.
