Add these values

[yuval1983]

Hi
I want to add these values filter and I want it to affect what is in the view

fetch dt.entity.service
| fields entity.name, managementZones = managementZones
| filter matchesValue(managementZones, "prod")

-------------------------------------------------------------

fetch dt.entity.service
| expand tags
| filter contains(tags, "prod")

The code that is displayed is

const processedResults: MetricResult[] = metricQuery.result[0].data.map(result => { return { "Service Name": result.dimensionMap["dt.entity.service.name"], "Service ID": result.dimensionMap["dt.entity.service"], "Tag": result.dimensionMap["dt.entity.service"], "Failure Rate": +result.values }; });

Is there something I can write instead of dt.entity.service ??

[gbaudart]

hi @yuval1983 ,

When I run these 2 queries independently, I don't get any errors on my side.

Are these two different requests? Can you provide us with a screenshot of your query with the visible error please?

[yuval1983]

Hi,

I want to filter the table by total of TAGS and ZONE, including a cut according to the filter below, instead of filtering only before the service name.

[gbaudart · Accepted solution]

@yuval1983
To use these 2 filters in the same query, you may test :

fetch dt.entity.service
| fields entity.name, managementZones, tags
| filter matchesValue(managementZones, "prod")
| expand tags
| filter contains(tags, "prod")

[yuval1983]

---

@gbaudart wrote:

@yuval1983
To use these 2 filters in the same query, you may test :

fetch dt.entity.service
| fields entity.name, managementZones, tags
| filter matchesValue(managementZones, "prod")
| expand tags
| filter contains(tags, "prod")

Ok, I want to filter the results based on services and tags and display them in a window (table). The filter will look like this: services:test, tags:test2. Also, the Zone:prod .

----------------------------------------------

---

What should I replace in this setting?

"Zone": result.dimensionMap["dt.entity.service"],
"Tag": result.dimensionMap["dt.entity.service"],

------------------------------

import { metricsClient } from '@dynatrace-sdk/client-classic-environment-v2';

export default async function fetchMetricResults() {
const serviceSelection = $Service;
const metricKey = "builtin:service.errors.total.rate";

const config = {
metricSelector: buildQuery(serviceSelection, metricKey),
resolution: "Inf",
from: $dt_timeframe_from,
to: $dt_timeframe_to,
acceptType: "application/json; charset=utf-8"
};

if (config.metricSelector.length > 3500) {
return "Please select fewer services";
}

const metricQuery = await metricsClient.query(config);

const processedResults: MetricResult[] = metricQuery.result[0].data.map(result => {
return {
"Service Name": result.dimensionMap["dt.entity.service.name"],
"Service ID": result.dimensionMap["dt.entity.service"],
"Zone": result.dimensionMap["dt.entity.service"],
"Tag": result.dimensionMap["dt.entity.service"],
"Failure Rate": +result.values
};
});

return processedResults;
}

function buildQuery(inputs: string[], metricKey: string): string {
const filters = inputs.map(
input => `in("dt.entity.service", entitySelector("type(service), entityName.equals(~"${input}~")"))`
);
const filterString = filters.join(",");

return `${metricKey}:filter(or(${filterString})):splitBy("dt.entity.service"):sort(value(auto, descending)):names`;
}

[yuval1983]

HI,

 I'm not looking for an error

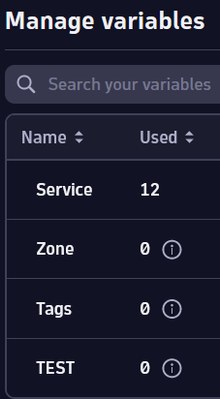

I have created a dashboard and added filters for Service, Zone, and Tag. The filter for Service is working fine and the dashboard is being filtered accordingly when I select a service. However, when I try to filter by Zone or Tag, it doesn't work and doesn't display the required information on the dashboard.

I have checked the code and noticed that the following code is used for Service filtering:
"Service Name": result.dimensionMap["dt.entity.service.name"],
"Service ID": result.dimensionMap["dt.entity.service"]

But, I am not sure what code I should use for Zone and Tag filtering. I am not sure which "dt.xxx" I should use for Zone and Tag filtering or what I should configure in the code for filtering by Zone and Tag.

[gbaudart]

mz and tags are not Dynatrace entities. you will therefore not have an equivalent in dt.xxx. you have to find a workaround

[yuval1983]

oK

The classic bashboard I can do this filter there according to TAG

Why can't it be done here?

[gbaudart]

I'm not saying we can't filter on tags, just that there is no dt.xxx for tags.
When I want to filter on tags with Grail or the SDK, I generally use an EntitySelector.

However, I am not strong enough in SDK code to easily reformulate your "query"

[yuval1983]

HI

I was able to create the filter that I needed. Now, I just need to link it to the code inside the table, which I attached above. I'm not sure how to insert this filter into the table's view.

fetch dt.entity.service
| expand tags
| filter contains(tags, "Planning and stability")
| fields managementZones, tags

[gbaudart]

If you “simply” have to take the filter value.
I think, You may use the $FILTER variable :

$Tags_PlanningAndStability

[yuval1983]

OK

Could you assist me in inserting a value into this code? I am having trouble inserting it in a way that it will filter rather than tag. Below is the code that I have mentioned earlier

import { metricsClient } from '@dynatrace-sdk/client-classic-environment-v2';

export default async function fetchMetricResults() {
const serviceSelection = $Service;
const metricKey = "builtin:service.errors.total.rate";

const config = {
metricSelector: buildQuery(serviceSelection, metricKey),
resolution: "Inf",
from: $dt_timeframe_from,
to: $dt_timeframe_to,
acceptType: "application/json; charset=utf-8"
};

if (config.metricSelector.length > 3500) {
return "Please select fewer services";
}

const metricQuery = await metricsClient.query(config);

const processedResults: MetricResult[] = metricQuery.result[0].data.map(result => {
return {
"Service Name": result.dimensionMap["dt.entity.service.name"],
"Service ID": result.dimensionMap["dt.entity.service"],
"Tag":  xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx,
"Failure Rate": +result.values
};
});

return processedResults;
}

function buildQuery(inputs: string[], metricKey: string): string {
const filters = inputs.map(
input => `in("dt.entity.service", entitySelector("type(service), entityName.equals(~"${input}~")"))`
);
const filterString = filters.join(",");

return `${metricKey}:filter(or(${filterString})):splitBy("dt.entity.service"):sort(value(auto, descending)):names`;
}

[gbaudart · Accepted solution]

Try this :

const processedResults: MetricResult[] = metricQuery.result[0].data.map(result => {
return {
"Service Name": result.dimensionMap["dt.entity.service.name"],
"Service ID": result.dimensionMap["dt.entity.service"],
"Tag": $Tags_PlanningAndStability,
"Failure Rate": +result.values
};
};

On the other hand, to improve the rereading of your code, you should indent it

[yuval1983]

There is progress now, and I can see the value. However, the filter doesn't really perform a filter like the service filter's function. It only shows what I mark inside the filter.

The classic dashboard where I make the change in the filter by filtering, so I see what service is inside that tag.

Thank you for your assistance and patience.

function buildQuery(inputs: string[], metricKey: string): string {
const filters = inputs.map(
input => `in("dt.entity.service", entitySelector("type(service), entityName.equals(~"${input}~")"))`
);
const filterString = filters.join(",");

return `${metricKey}:filter(or(${filterString})):splitBy("dt.entity.service"):sort(value(auto, descending)):names`;
}

[yuval1983]

hi @Pawel_Zalewski

Maybe you have a solution ?:)

[Pawel_Zalewski]

Hi yuval1983,

I'm afraid I don't have idea for solution 😞 But I see you made a big progress with @gbaudart, nice work 👏

[yuval1983]

I was able to link a tag to the table, but you pointed out that the name of the service in the table is incorrect. I would like to display all the names under the same tag group. I need help figuring out how to do it.

[yuval1983]

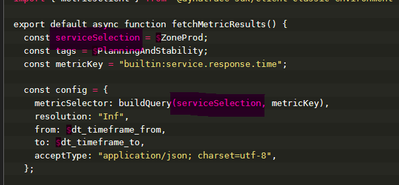

HI, @gbaudart

I need to know how to search for a desired service using tags.

Maybe I need to change something here?

serviceSelection

This is the code-

https://paste.ofcode.org/3863CCfHHf3qzWB2REYYAGA

Could you please tell me where I can find an index or a way to debug it?

[gbaudart]

Hi @yuval1983
In the EntitySelector command, you can filter with the desired tags like this:

input => `in("dt.entity.service", entitySelector("type(service), entityName.equals(~"${input}~"), tag("$TAG_VARIABLE")"))`

[yuval1983]

Thank you for your assistance.

I have a new project and need to prioritize, but I will update you once I have more information. Thank you again for your help and prompt responses.
