Extract IP and Status from CONTENT of dt.system.events to show in a Dashboard

Raj
Helper

Hello All,

I have few entries coming in dt.system.events which are coming from SNMP Generic Device extension and wanted to show in a dashboard like below:

IPStatus
0.0.0.0ERROR
1.1.1.1Successful



The entries have all data but I am not able to use DQL Architect to extract information and show in dashboard. Check entries below:

Failed to assign monitoring configuration to ActiveGate. Reason: DEVICE_CONNECTION_ERROR:Status DEVICE_CONNECTION_ERROR (38) returned from 1 agents (0.0.0.0: Agent(0.0.0.0): GetBulk timout args: 1.3.6.1.2.1.1.5.0 : request timeout (after 3 retries) [status code=38]);
Host: 1.1.1.1 Query successful

 Can someone please guide me how to get the table above from the entries shared. Any lead would be appreciated.

2 REPLIES 2

Eric_Yu
Dynatrace Mentor
Dynatrace Mentor

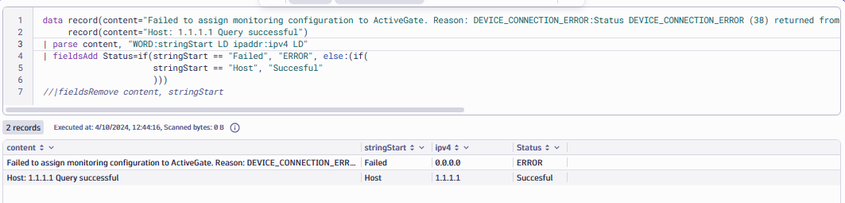

You can use an additional field as a conditional for your "STATUS", something like this:



data record()
| parse content, "WORD:stringStart LD ipaddr:ipv4 LD"
| fieldsAdd Status=if(stringStart== "Failed", "ERROR", else:(if(
                      stringStart== "Host", "Succesful"
                      )))
| fieldsRemove stringStart





That'd be the case if you only have those two types of records, which are easy to parse.

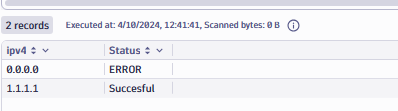

Removing the unnecessary fields, and you'd get the result you wanted.



Let me know if it helps.

Eric Yu | LATAM ACE Consultant

Raj
Helper

Thanks Eric. It helped. 😊
