Custom Visual component for Dashboards and Notebooks

[Zoltan]

Hi,

We can't seem to be able to fit our requirements for data visualization into the current dashboard visual "Categorical", as we require some additional stacking / grouping.

Is there any plan in the future to be able to deploy our own corporate custom visual for dashboards and / or notebooks, that we could then select from the list of visuals?

Even if the settings page would be a json or a yaml, it would still be quite useful. There's a lot we could do without actually going with full blown custom app extension - without having to do the whole page with a custom app.

As an example, I have a dashboard where I already have 10 + timeseries bar chart.

Now, because of this request I have to add 2 custom non timeseries based stacked bar charts, it seems to me that currently my only option is to rebuild the whole page as a custom extension app page, but it means I have to rebuild the 10 existing visuals as well on the page (customers want all of this on one page).

Thanks,

Zoltan

[MikeleH]

Hi @Zoltan ,

Can you be more specific about what you're missing with the categorical bar chart?

JFYI the visualizatiuon already supports stacking / grouping.

[Zoltan]

Hi Mikele,

Thanks for the prompt reply.

I can't seem to find how to display these records, so that each bar is a data.area, and each bar is stacked by pg_int. I can do that with Bar chart, but Bar chart requires a time field. Histogram requires a range, that's not applicabe here either - it's just classical sub category.

For the sake of simplicity, here's a sample data that represents the structure that I fetch with some more complext DQL:

data json: """
[{
"pg_int": "1",
"data.area": "01A",
"num_items": 32730
},
{
"pg_int": "2",
"data.area": "02A",
"num_items": 8640
},
{
"pg_int": "1",
"data.area": "02A",
"num_items": 36276
},
{
"pg_int": "2",
"data.area": "02A",
"num_items": 4320
}]
"""

When I look at

https://developer.dynatrace.com/design/components-preview/charts/CategoricalBarChart/ it's quite straight forward how to do stacked bars based on sub categories, but I can't seem to find any information on how to achieve the same with

https://docs.dynatrace.com/docs/analyze-explore-automate/dashboards-and-notebooks/edit-visualization...

And neither the doc mentions anything about how to select column for stacking.

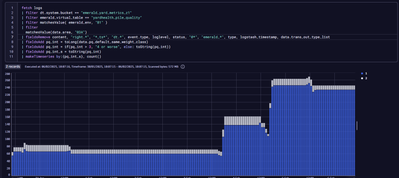

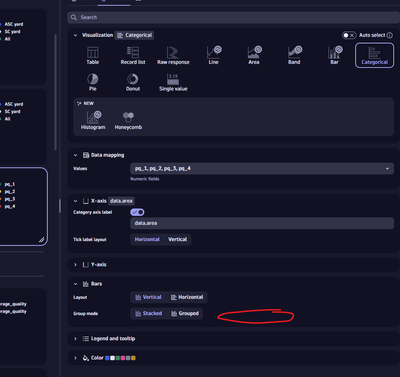

Screenshots attached.

/Z

[MikeleH]

Hi @Zoltan ,

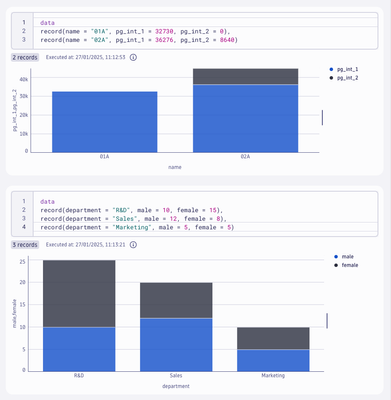

I think that the issue is the way in which your data is structured. Here are 2x examples that I just created:

 Let me know if this helps 🙂

[ludovic-abraham]

Hello,

I'm having similar issue with categorical visualization.

The proposed solution seems to work with test data, but I see the record content has to be at the root level.

By working with logs, I managed to build a record similar to your example but the created record is inside a field, not at the root.

If I take your example it would look like this:

data record(r = record(name = "01A", pg_int_1 = 32730, pg_int_2 = 0)),
record(r =record(name = "02A", pg_int_1 = 36276, pg_int_2 = 8640))

How do you do to have the content of the record at the root level to be able to use categorical vizualisation ?

Regards

[MikeleH · Accepted solution]

Hi @ludovic-abraham

For that you could use the fieldsFlatten command - https://docs.dynatrace.com/docs/discover-dynatrace/references/dynatrace-query-language/commands/stru...

data record(r = record(name = "01A", pg_int_1 = 86598, pg_int_2 = 0)),
record(r = record(name = "02A", pg_int_1 = 26253, pg_int_2 = 8640))
| fieldsFlatten r
| fieldsRemove r

 

[ludovic-abraham]

Hello @MikeleH ,

Thanks a lot, at first I thought it was not working with fieldsFlatten but the prefix added by this function seems to do the job and I confirm I'm able to use categorical visualization with it.

Again thank you

Regards
