Proxy Chain in distributed Traces

Swati_Bhat
Visitor

Hi Everyone ,

Can someone please guide me on -to see proxy chain in distributed trace, do we need to add any plugin or by default proxy details are shown?



Thanks

SB

2 REPLIES 2

Romanenkov_Al3x
DynaMight Mentor
DynaMight Mentor

Hello.

Dynatrace will automatically detects proxy without any plugins from meta-data of requests. For example: if you have  HAproxy on host or kube-proxy - you can see this information on ServiceFlow - it will be discovered automatically.


You also can find this information on Trace level (PurePath level) in Summary tab:

Screenshot *Screenshot *

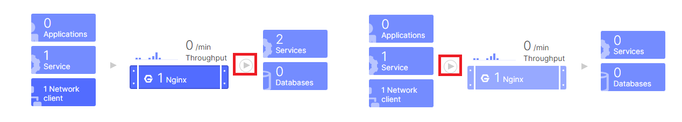

On graphics you can also see tips:

left - on this screenshot service string #2 from *, right - on this screenshot service string #3 from *left - on this screenshot service string #2 from *, right - on this screenshot service string #3 from *



For more information and examples I recommend to check Dynatrace blog these great articles: link#1, link#2

Regards,

Alex Romanenkov



DT_NGINX_ALL_WHITELISTED=1

andre_vdveen
DynaMight Champion
DynaMight Champion

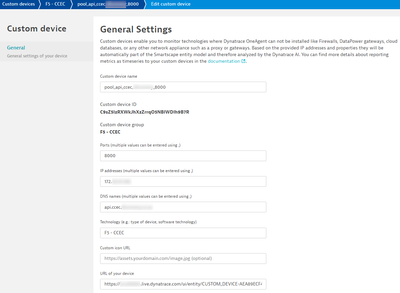

Further to what @Romanenkov_Al3x already explained, you could enhance the service flow views by adding a more descriptive name for each proxy by adding a custom device, instead of just seeing the IP addresses.

We've also taken it one step further for a customer by integrating it with the F5 BIG-IP plugin, so when one clicks on the name in the right-hand area of the screen, you're taken to the custom device, where you can then click the 'Show details' button and you'll be taken to the F5 plugin metrics for that specific pool.
