RUM : Angular instrumentation of click



We have an angular webapp Single Web Page. We have enabled Angular for this application and injected the required code.

We now get Load Page and XHR calls. But we don't get anything when there is a click on a link in the page.

I think we should get the click like "Click on Detail", "Click on History" and so on ?

Should be enable something else ?




DynaMight Guru
DynaMight Guru

Dynatrace only captures user actions when there is a web request involved.

You can utilize the API of the JavaScript agent to create user actions for any interaction you like though.

It's pretty straight forward and you can download examples directly from the dynatrace UI:

Settings -> Web and Mobile Monitoring -> Advanced Setup -> JavaScript tag API

Dynatrace Certified Master, AppMon Certified Master - Dynatrace Partner -

Hello @Patrick H.

Hum hum .. We have web request/xhr involved for each click but nothing indicate the user has clicked and where.

In the old version of dynatrace (appmon), we used to have "User A clicked on Menu Women" so we could reproduce issue easier.

Currently with my angular instrumentation, I don't see where the user has clicked so it is complex to reproduce and reduce the interest of Dynatrace RUM. This is why i think this is something on my side which is not correctly setup.


Hey Alexandre,

if there is a web request attached to the click, as you said, then Dynatrace should capture it and you should see it in the UI.

Pls feel free to open a support ticket such that we can have a look at it!



Ah I think I get what you want now. The name schema is indeed different from AppMon to dynatrace. Dynatrace names XHR actions after the triggering XHR request not the user input like in AppMon.

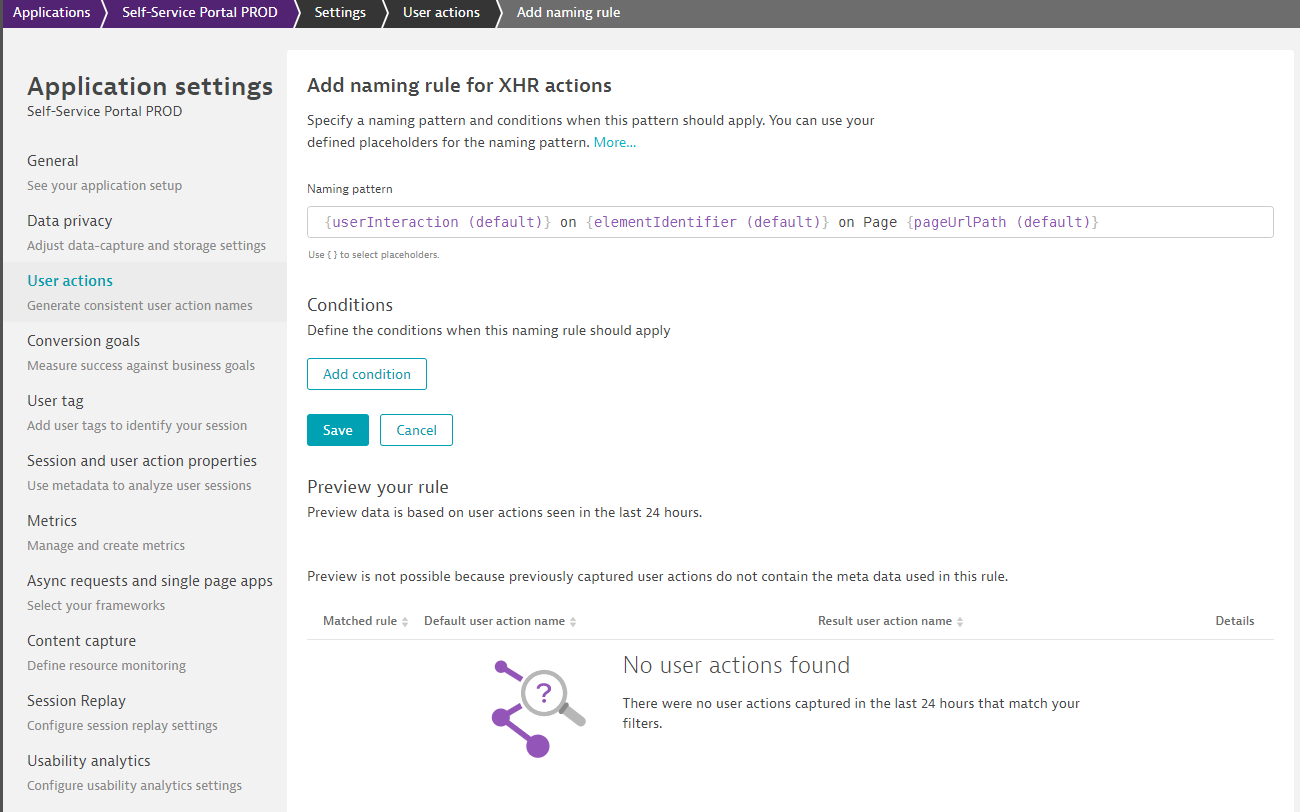

But you can recreate that behavior, go to: Application Settings -> User Acions -> Naming Rules for XHR Actions and create the following rule:

Naming patter:

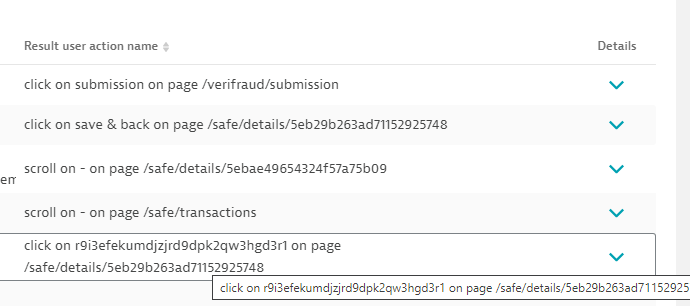

{userInteraction (default)} on {elementIdentifier (default)} on Page {pageUrlPath (default)}

This will recreate the same user action names as in AppMon.

Dynatrace Certified Master, AppMon Certified Master - Dynatrace Partner -

Indeed it works ! Big big thanks @Patrick H.

I am surprised it is not out of the box @Thomas Z.

We can definitivelly have a better debugging with that : than just XHR url call.

It always depends on the application.

For multi language applications you might get a lot of different user action for the same button click, which would be bad for baselining.

The XHR URL is a better default for grouping the user actions together correctly, also it might not be as readable as the user interaction in some cases. Luckily the new User Action Naming Engine is very flexible so you can satisfy all the use cases depending on the application.

Dynatrace Certified Master, AppMon Certified Master - Dynatrace Partner -
