Solved: Re: Used MFA with browser clickpath

Akli · ‎18 Nov 2024

Hello
we need to use MFA in our browser clickpath
here is the topic:
The application uses authentication via OKTA portal
Google authtificator is used as a software based authenticator
we need a script that is used by the scenario to generate a TOTP code that can be placed in the okta page to validate the authentication of Google athtifcator to authenticate with the application.

I managed to get this code to work on a browser but it doesn't work on Dynatrace

const crypto = (globalThis.crypto || require("crypto").webcrypto).subtle;

const base32 = {
50: 26,
51: 27,
52: 28,
53: 29,
54: 30,
55: 31,
65: 0,
66: 1,
67: 2,
68: 3,
69: 4,
70: 5,
71: 6,
72: 7,
73: 8,
74: 9,
75: 10,
76: 11,
77: 12,
78: 13,
79: 14,
80: 15,
81: 16,
82: 17,
83: 18,
84: 19,
85: 20,
86: 21,
87: 22,
88: 23,
89: 24,
90: 25,
};

class TOTP {
/**
* Generates a Time-based One-Time Password (TOTP).
* @async
* @param {string} key - The secret key for TOTP.
* @param {Options} options - Optional parameters for TOTP.
* @returns {Promise<{otp: string, expires: number}>} A promise that resolves to an object containing the OTP and its expiry time.
*/
static async generate(key, options) {
const _options = {
digits: 6,
algorithm: "SHA-1",
encoding: "hex",
period: 30,
timestamp: Date.now(),
...options,
};
const epochSeconds = Math.floor(_options.timestamp / 1000);
const timeHex = this.dec2hex(Math.floor(epochSeconds / _options.period)).padStart(16, "0");

const keyBuffer = _options.encoding === "hex" ? this.base32ToBuffer(key) : this.asciiToBuffer(key);

const hmacKey = await crypto.importKey(
"raw",
keyBuffer, {
name: "HMAC",
hash: {
name: _options.algorithm
}
},
false, ["sign"]
);
const signature = await crypto.sign("HMAC", hmacKey, this.hex2buf(timeHex));

const signatureHex = this.buf2hex(signature);
const offset = this.hex2dec(signatureHex.slice(-1)) * 2;
const masked = this.hex2dec(signatureHex.slice(offset, offset + 8)) & 0x7fffffff;
const otp = masked.toString().slice(-_options.digits);

const period = _options.period * 1000;
const expires = Math.ceil((_options.timestamp + 1) / period) * period;

return {
otp,
expires
};
}

/**
* Converts a hexadecimal string to a decimal number.
* @param {string} hex - The hex string.
* @returns {number} The decimal representation.
*/
static hex2dec(hex) {
return parseInt(hex, 16);
}

/**
* Converts a decimal number to a hexadecimal string.
* @param {number} dec - The decimal number.
* @returns {string} The hex representation.
*/
static dec2hex(dec) {
return (dec < 15.5 ? "0" : "") + Math.round(dec).toString(16);
}

/**
* Converts a base32 encoded string to an ArrayBuffer.
* @param {string} str - The base32 encoded string to convert.
* @returns {ArrayBuffer} The ArrayBuffer representation of the base32 encoded string.
*/
static base32ToBuffer(str) {
str = str.toUpperCase();
let length = str.length;
while (str.charCodeAt(length - 1) === 61) length--; // Remove pads

const bufferSize = (length * 5) / 8; // Estimate buffer size
const buffer = new Uint8Array(bufferSize);
let value = 0,
bits = 0,
index = 0;

for (let i = 0; i < length; i++) {
const charCode = base32[str.charCodeAt(i)];
if (charCode === undefined) throw new Error("Invalid base32 character in key");
value = (value << 5) | charCode;
bits += 5;

if (bits >= 😎 buffer[index++] = value >>> (bits -= 8);
}
return buffer.buffer;
}

/**
* Converts an ASCII string to an ArrayBuffer.
* @param {string} str - The ASCII string to convert.
* @returns {ArrayBuffer} The ArrayBuffer representation of the ASCII string.
*/
static asciiToBuffer(str) {
const buffer = new Uint8Array(str.length);
for (let i = 0; i < str.length; i++) {
buffer[i] = str.charCodeAt(i);
}
return buffer.buffer;
}

/**
* Converts a hexadecimal string to an ArrayBuffer.
* @param {string} hex - The hexadecimal string to convert.
* @returns {ArrayBuffer} The ArrayBuffer representation of the hexadecimal string.
*/
static hex2buf(hex) {
const buffer = new Uint8Array(hex.length / 2);

for (let i = 0, j = 0; i < hex.length; i += 2, j++) buffer[j] = this.hex2dec(hex.slice(i, i + 2));

return buffer.buffer;
}

/**
* Converts an ArrayBuffer to a hexadecimal string.
* @param {ArrayBuffer} buffer - The ArrayBuffer to convert.
* @returns {string} The hexadecimal string representation of the buffer.
*/
static buf2hex(buffer) {
return [...new Uint8Array(buffer)].map((x) => x.toString(16).padStart(2, "0")).join("");
}

/**
* The cryptographic interface used for HMAC operations.
* Chooses the Web Crypto API if available, otherwise falls back to Node's crypto module.
* @type {SubtleCrypto}
*/
}

const TOTP_KEY = "YOUR_SECRET_KEY_GOOGLE_AUTHENTIFICATOR";
const result = TOTP.generate(TOTP_KEY).then(function(result) {
api.info(result);
api.setValue("CODE_TOTP", result);
});

has anyone managed to get MFA working with Google Authenticator in Browser clipart ?

ChadTurner · ‎31 Dec 2024

Once a vendor achieves this, they will strike gold. I don't know of any Synthetic vendor that offers MFA, 2FA etc....

-Chad

Cezary_Tomaszew · ‎09 Jan 2025

Hi,
If you use a TOTP token for authentication, the JavaScript step is currently the only way to achieve it. We're working on better support for it.

1. I do not know why your code does not work, but try this one:

async function getOTP(secretKeyArrayBuffer) {
// Define the time step and T0. T0 is commonly 0 in Unix epoch.
const epoch = Math.floor(Date.now() / 1000);
const timeStep = 30;
const counter = Math.floor(epoch / timeStep);

// Convert the counter to an ArrayBuffer (8 bytes, big-endian)
const counterBuffer = new ArrayBuffer(8);
const counterView = new DataView(counterBuffer);
counterView.setUint32(4, counter); // Set the last 4 bytes as the counter

// Import the secret key for HMAC-SHA-1
const key = await window.crypto.subtle.importKey(
'raw', // raw format of the key
secretKeyArrayBuffer, // the key
{
name: 'HMAC',
hash: {
name: 'SHA-1'
}
}, // algorithm details
false, // not extractable
['sign'] // only need to sign
);

// Generate HMAC-SHA-1 of the counter using the secret key
const hmacBuffer = await window.crypto.subtle.sign('HMAC', key, counterBuffer);

// Convert HMAC result into a Uint8Array for easy byte manipulation
const hmac = new Uint8Array(hmacBuffer);

// Dynamic Truncation to get a 4-byte string and then a 31-bit number
const offset = hmac[hmac.length - 1] & 0xf;
const binary = ((hmac[offset] & 0x7f) << 24) | (hmac[offset + 1] << 16) | (hmac[offset + 2] << 😎 | (hmac[offset + 3]);

// Modulo 1,000,000 to get the final OTP
const otp = binary % 1000000;

// Ensure the OTP is a 6-digit number
return otp.toString().padStart(6, '0');
}

function convertBase32ToArrayBuffer(base32) {
const base32Alphabet = "ABCDEFGHIJKLMNOPQRSTUVWXYZ234567";
let bits = "";
let paddingCount = 0;

base32 = base32.toUpperCase();

for (let i = 0; i < base32.length; i++) {
const char = base32.charAt(i);
if (char === "=") { // Padding character, stop processing
break;
}
const charIndex = base32Alphabet.indexOf(char);
if (charIndex === -1) {
throw new Error("Invalid Base32 character encountered.");
}
bits += charIndex.toString(2).padStart(5, '0');
}

// Convert bits to bytes
const bytes = [];
for (let i = 0; i < bits.length; i += 😎 {
const byte = bits.substring(i, i + 8);
// Incomplete byte (less than 8 bits) ignored
if (byte.length === 😎 {
bytes.push(parseInt(byte, 2));
}
}

// Convert byte array to ArrayBuffer
const arrayBuffer = new ArrayBuffer(bytes.length);
const uint8Array = new Uint8Array(arrayBuffer);
for (let i = 0; i < bytes.length; i++) {
uint8Array[i] = bytes[i];
}

return arrayBuffer;
}

var totpSecret = api.getCredential("CREDENTIALS_VAULT-XXXXXXXXXXX", "token");
api.startAsyncSyntheticEvent();
getOTP(convertBase32ToArrayBuffer(totpSecret)).then(otp => {
api.setValue('totp_token', otp);
api.finish();
});

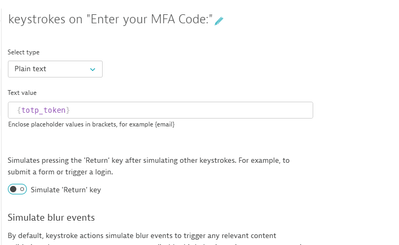

2. In the action where you put the code in yout input text, don't forget to pass the variable:

Let me know if it helps you.

Best regards,

Cezary
