24 Oct 2024 04:23 PM - last edited on 25 Oct 2024 08:27 AM by MaciejNeumann
Hi!, when getting some information from a process group instance that runs on a pod in a kubernetes cluster, I can get the KUBERNETES_CLUSTER_ID that looks like a UUID:
curl https://{environmentid}.live.dynatrace.com/api/v2/entities/PROCESS_GROUP_INSTANCE-ABCDEFGHI1234567 | jq -r '.properties.metadata[] | select(.key == "KUBERNETES_CLUSTER_ID")
703de8b4-2bc0-4f31-8303-3507b58d9d8b
But when I try to find to which cluster is related there is no field that can match that UUID:
curl https://{environmentid}.live.dynatrace.com/api/v2/entities?entitySelector=type(KUBERNETES_CLUSTER)' | jq .
{
"totalCount": 3,
"pageSize": 50,
"entities": [
{
"entityId": "KUBERNETES_CLUSTER-A1",
"type": "KUBERNETES_CLUSTER",
"displayName": "cluster-1"
},
{
"entityId": "KUBERNETES_CLUSTER-B2",
"type": "KUBERNETES_CLUSTER",
"displayName": "cluster-2"
},
{
"entityId": "KUBERNETES_CLUSTER-C3",
"type": "KUBERNETES_CLUSTER",
"displayName": "cluster-3"
}
]
}
How can I relate that UUID with some entity that can give me the cluster name?
Thanks!
Johann
25 Oct 2024 06:46 AM
Hi Johan,
Try adding ,fromRelationships.isClusterOfPg(type("PROCESS_GROUP"),entityId("PROCESS_GROUP-ID")) on entityselector field
Regards,
Elena.
25 Oct 2024 07:29 AM
Hello @johannrenck

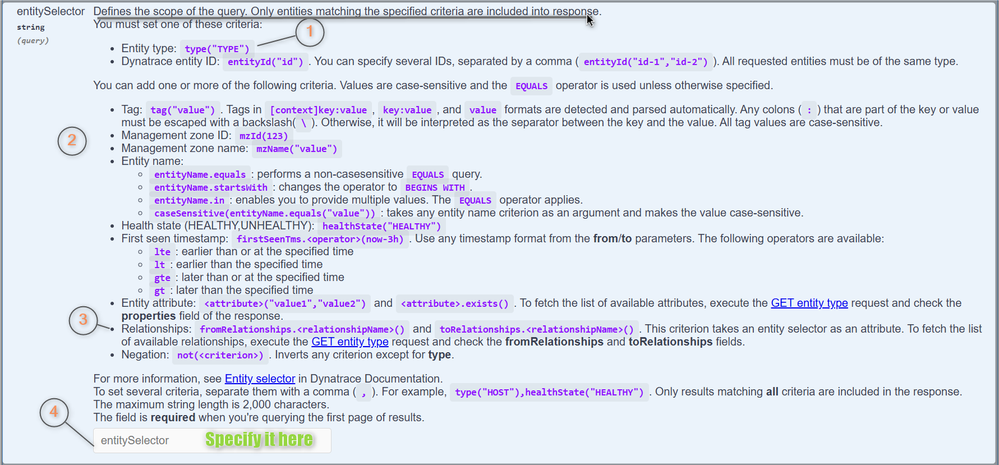

You should specify the entity selector based on which the results will be filtered and being included in the Json file and later on can be saved in Excel Sheet.
DT Ref:
You can also refer to the provided guidance by @erh_inetum
Hoping it adds value.
BR,
Peter.
25 Oct 2024 10:37 AM - edited 25 Oct 2024 10:39 AM
you can use this entity selector to get the full details about the cluster
type(KUBERNETES_CLUSTER),kubernetesClusterId("703de8b4-2bc0-4f31-8303-3507b58d9d8b")
then, under relationships key focus on `toRelationship` and use it in reverse way like the following entitySelector statement
type(process_group_instance),fromRelationship.isMainPgiOfCgi(type(CONTAINER_GROUP_INSTANCE),fromRelationship.isCgiOfCluster(type(KUBERNETES_CLUSTER),kubernetesClusterId("703de8b4-2bc0-4f31-8303-3507b58d9d8b")))
this is if you need to get all process group instances that's included within your cluster as example
you trace each entity from the relationship in this way like this https://{environmentid}.live.dynatrace.com/api/v2/entities/KUBERNETES_CLUSTER-C3 , then check the entity details and to follow the sequence of relationships
