DataPower Plugin Metrics - Calls Per Second

netanelad
Contributor

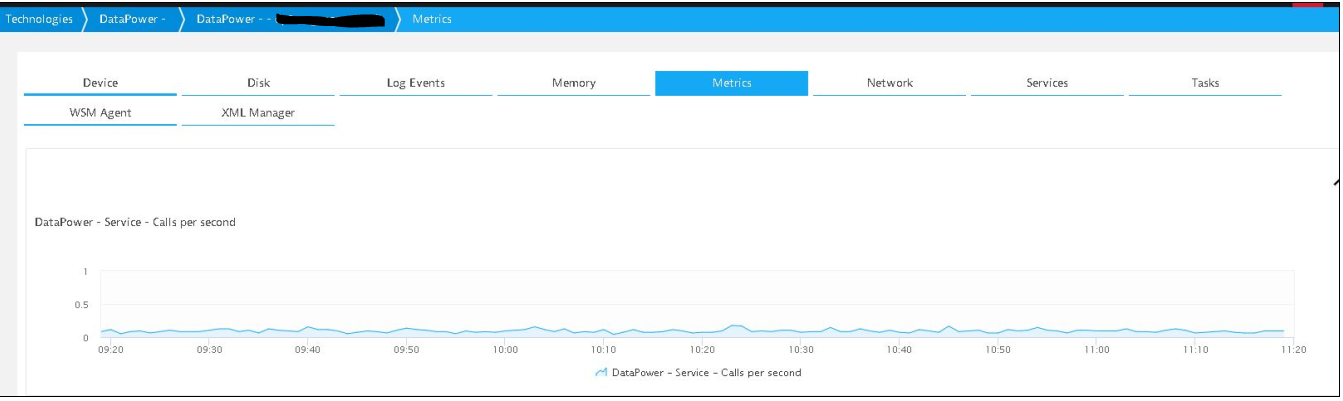

I'm monitoring services in DataPower, and built a dashboard that shows the statistics of the metric "Service - Calls Per Second" for each service. Some services show no data at all for the metric "Calls Per Second" although through looking at the "Service - Time" metric I can see that the service was working at that time frame.

Other then that, going into Further Details I can see that "Calls Per Second" appears under "Metrics" and not as a metric under "Services", so is it an overall metric for DataPower's functionality or can I use it per service?


So, how can I monitor how many calls the service had on the given time frame?

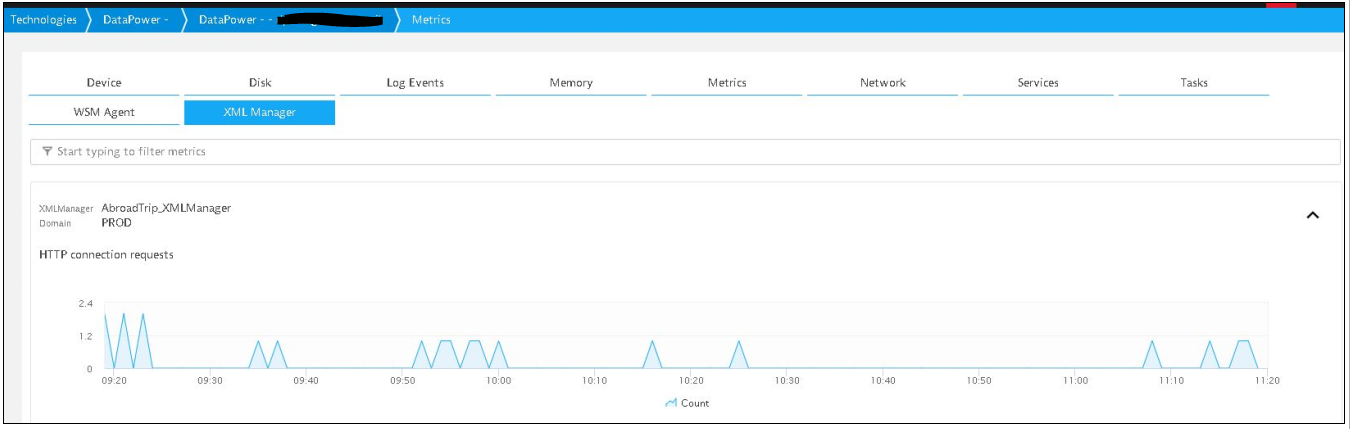

*** We have found a metric under XML Manager tab called: HTTP connection request. it is split per service.
can we use its data to count the number of uses of the service?


12 REPLIES 12

skrystosik
DynaMight Guru
DynaMight Guru

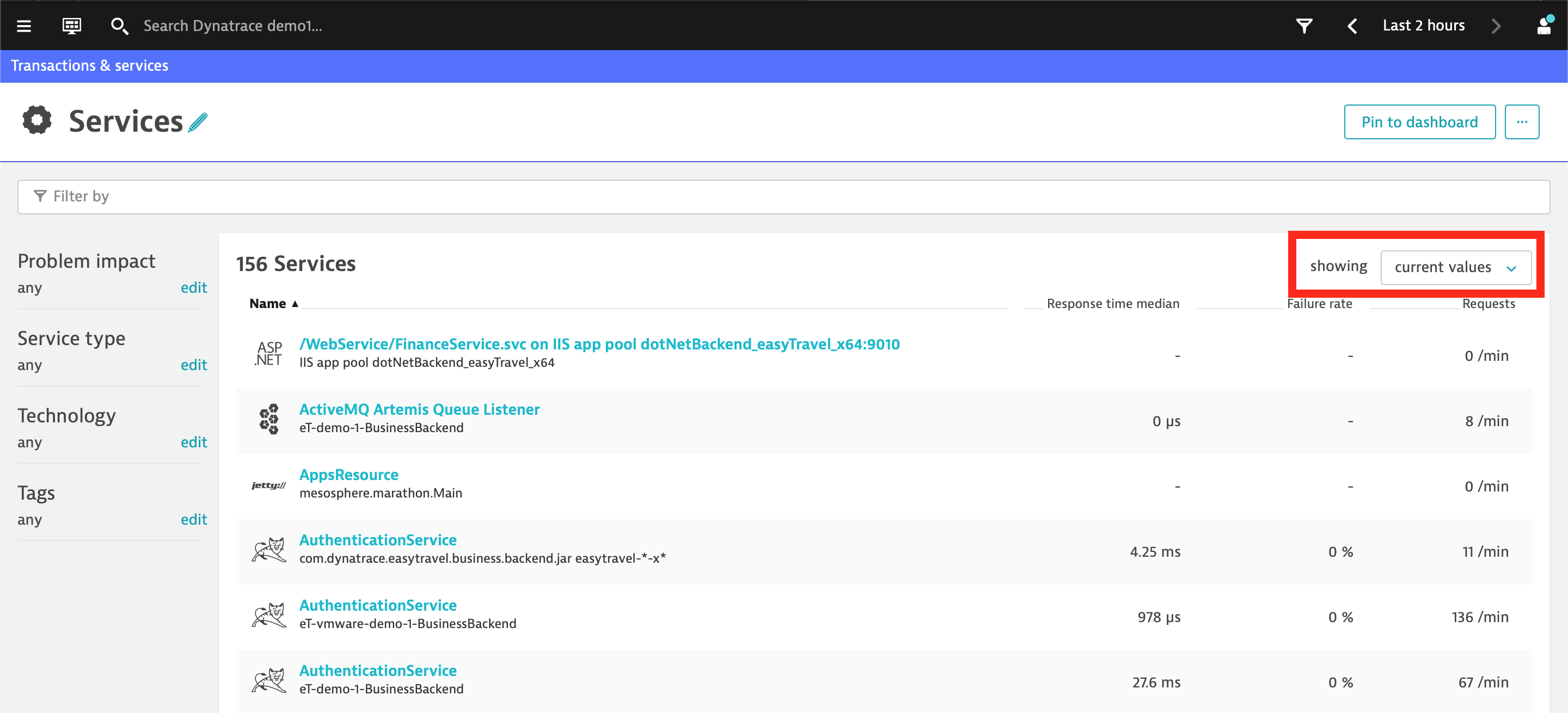

When you are lookin at this page:

with global timefram set as last XX hours/min/days default option is showing current values. This is why you can see no requests on those services. You can change it to calculate over timeframe and you will see it. But amount of calls per minut for services that are used rarely may looks like around 0/min or so. If you want to know extact number of calls you can create multidimensional view inside service:

https://www.dynatrace.com/news/blog/multi-dimensional-analysis-views-for-service-metrics-and-custom-...

Sebastian


Regards, Sebastian

Hi @sebastian k.

That is a good answer for question about services that oneagent discover & show 😉

Our question is about services that IBM DataPower plugin retrieve & show


dynatrace certificated professional - dynatrace master partner - Matrix Soft Ware Division - Israel

Ok my bad 🙂


Regards, Sebastian

Mike_L
Dynatrace Guru
Dynatrace Guru

Hi,

That metric should appear under services and not metrics. Could you open a support case for it?

Mike


Mike

Will do

Thanks

Yos


dynatrace certificated professional - dynatrace master partner - Matrix Soft Ware Division - Israel

Ask them for the 1.091 version, I just pushed that version out based on your screenshot and it should fix the metric location.


Mike

That did it, Thanks!


Hi Mike

Thanks a lot for the fast fix!

Just a quick question here as DP dummy, what is the HTTP connection requests metric stand for?



dynatrace certificated professional - dynatrace master partner - Matrix Soft Ware Division - Israel

An XML manager obtains and manages XML documents, stylesheets, and other document resources on behalf of one or more services.
The HTTP connection requests is the number of requests which uses HTTP connections.


Mike

Hi @Michael L. thanks a lot for explanation


dynatrace certificated professional - dynatrace master partner - Matrix Soft Ware Division - Israel

jcurbina
Guide

Hi,

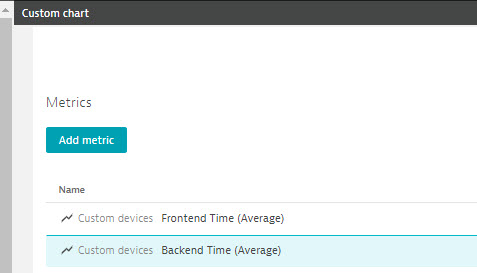

In the list of metrics available for datapower extension using custom chart, I can see two of them called "frontend time" and "backend time", which do not show data. Does anyone know if something needs to be configured in the datapower to deliver that information

Regards,

Juan



Well spotted! Those two metrics can never get any data from the extension. They were added in the early days of the extension when a customer wanted to call the DataPower Rest API for all individual requests, calculate the time themselves and then push the results in using the API.

Mike
